When was your last backup?

We all know we should backup our important data. We all intend to back up our important data. We'll definitely back up that important data... tomorrow.

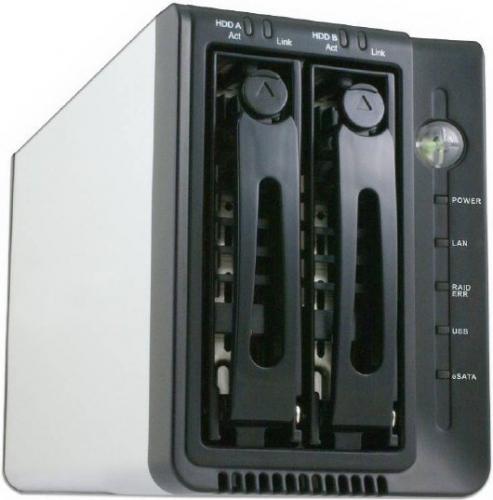

hypertec firestorm v2 NAS
click image to enlarge

The issue of how to back up your data is not new but also has not been solved for the average user. Despite a huge number of software solutions I've yet to find anything that actually works and is practical.

Want a solution that will save your data from the most common problem - hard disk failure? A solution that doesn't actually require you to remember to do anything? I thought so. The Hypertec Firestorm Dual Desktop is one example of a growing number of external storage units that hold more than one hard disk. In this case there are two. These can be configured in a number of ways, that I'll come onto in a moment. The key though is something called "RAID" - or Redundant Array of Inexpensive Disks, and the important word there is 'redundant'. There are vaious different types of RAID - given numbers such as RAID0, RAID1, RAID5 etc.

RAID0 is really a nisnomer and simply allows you to treat two big disks as one huge disk. Be very wary of this because it's just made it more likely you'll loose data! RAID1 is where things get interesting. A RAID1 system with two disks keeps exact copies of your data on both disks. If either disk fails then the RAID system detects and reports the error and starts using the one remaining good disk. By storing your data on a RAID1 system you automatically and transparently have all your data backed up, on the fly, to both disks.

In the event of failure you can remove the bad disk, replace it with a new one and the system will automatically copy the data from the good disk to the fresh new disk. You don't need to run complicated software programmes - it just works.

Hypertec Firestorm Dual Desktop

I've been waiting expectantly to review this product for over a year. Now it's here I'm not disappointed. The review unit came with two high performance 7200RPM, 250Gbyte hard disks. The enclosure itself is a high quality brushed aluminium affair that looks smart and business like measuring 10 x 14 x 24cm. To the front you have access to the two hot-swappable hard driver along with a status panel and power switch. The rear includes an array of connection options.

The product comes in two variants - one allows local connection directly to a computer via either USB or eSATA. The other also includes a 10/100Mbit Ethernet connection for independent network operation (NAS : Network Attached Storage). I have the unit with Ethernet.

Getting started

The Firestorm product comes with all the cables you need : eSATA, USB and Ethernet. Also in the box are two CDs and an A4 folded "Quick Installation Guide". The guide is the only disappointing feature of the product - it doesn't really tell you how to get started. The full manual is stored on one of the CDs, called "NAS Extension Guide" for some reason. The manual does include the information you need to get started, but the important bits are at the end. In my case I had to change the DIP switches on the back to get the GUI manager to be able to configure the drives. The very first thing you should do is open the manual on the hard-disk and skip everything until section 4 : RAID mode selection. Unfortunately the default configuration is not RAID1 - which is a pity.

This device offers a bewildering array of possible configurations. Not only can you configure the two disks in a traditional RAID 0 or 1 system, you can also use one of a number of alternatives including JBOD (Just a Bunch Of Disks) or even a combination. I'm not going to go over all the configurations because most people just don't need to know. The only really sensible way to configure this unit is as RAID-1. If you *really* need maximum space and can't buy bigger disks (which suggests 1Tbyte isn'y enough for you) then go for the JBOD option. Other configurations where a virtual disk spans both drives leave your data more vulnerable than a single drive.

For the rest of this review I'm only going to consider the product configured as a RAID1 drive.

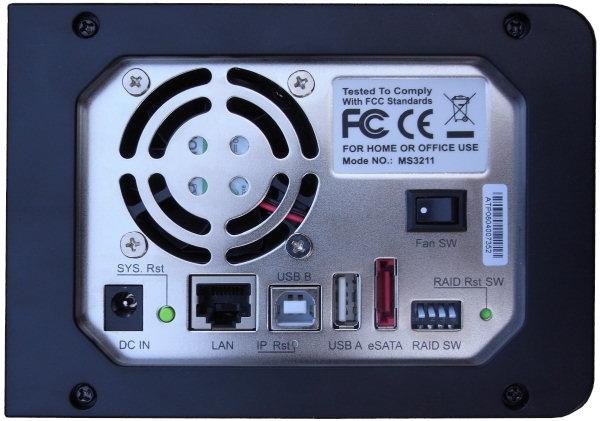

Rear view of Firestorm NAS (RAID) drive
click image to enlarge

Interface option

On the review unit you have a choice of USB, eSATA and Ethernet. In order of maximum theoretical performance you have Ethernet as the slowest with a maximum speed of around 10Mbytes/sec, then USB at around 40Mbytes/sec and the fastest eSATA at up to 400Mbytes/second.

Connecting to our network presented no problems - the device immediately configured itself and using Windows Explorer I could see the drive as a share that I could add to my computer. When connected to a network you also have access to a web admin tool that allows you to configure various parts of the system.

Our own network here is a hodge-podge of wired and wireless devices so I've not compared performance on Ethernet, however the following table summarises how well the product performed on USB and eSATA (and remember this is configured as RAID1).

 Single big file1Lots of medium files2Lots of small files3
ReadWriteReadWriteReadWrite
USB 29MB/s 21MB/s 26MB/s 19MB/s 20.4MB/s 14.1MB/s
eSATA 81MB/s 70MB/s 40MB/s 47MB/s 40MB/s 32MB/s
100M Ethernet (LAN)4 3.47MB/s 3.22MB/s 3.7MB/s 3.5MB/s 3.45MB/s 2.85MB/s

1 Transfer single 4G byte video file
2 Transfer directory tree containing 5G bytes of around 1400xMP3 files in around 500 folders
3 Transfer 4Gbytes of image files
4 For NAS transfers were aborted after approximately 1G of data transfer

Traditionally the problem with external hard-drives was performance, with USB being the bottleneck. This often relegated the external drive as a simple backup unit. eSATA removes this as an issue, allowing the external drive to operate at the same performance as an internal drive. Next time you're buying a computer make sure it has an eSATA interface.

Network Attach Storage

Update 11/11/2008 - member giro83 asked for Ethernet/NAS performance figures. The table above has been updated to include these figures. Network performace depends on very many things including speed of the network, number of other devices on the network and the kind of network interconnect devices (switches). To try and minimize these the Firestorm was directly connected to a spare 1G Ethernet port on a high-performance computer. The Firestorm has a maximum network speed of 100Mbps. That network speed is never going to give you more than around 8MB/sec throughput. In our tests above you'll see that we got around 3-3.5MB/sec.

To reduce the effect of software at either end of the system I also tried using 'ftp' (File Transfer Protocol) to move a large file back and forth between the Firestorm. On both a Windows PC and a mid-level Linux device I managed a transfer rate of 4.8MB/sec.

As a more typical home-network test, I connected the Firestorm to a wired port on a wireless access point and transferred a 256Mbyte, with a resulting transfer rate of 1.8MB/sec. This may seem slow (it is!) but across the same network to a Linux file server connected to the same access point I achieved only 1.4MB/sec.

NAS on a home network is generally going to give very poor performance. It's adequate for streaming a few media files and for providing some backup storage - but bear in mind that backing up even 4G of data is going to take around 25 minutes. For NAS to be practical you'll need at least a wired 1G (1000base-T) Ethernet network - don't even think about WiFi.

The Firestorm in use

Performance was great - but what we're really after is resilience. We want our data protected. With lots of data on the Firestorm I pulled one of the drives out. The device immediately reported an error but continued to function flawlessly. The software allows you to configure an email to tell you of disk failure so you know to go and fix it.

Copying more files onto the remaining disk I then hot-inserted the other disk back into the chassis. The system immediately spotted the return of that drive and started to synchronise the data. During synchronisation I tested the performance, and as expected it was operating at about 50% of throughput.

Attached to the computer via eSATA performance is excellent. To get the resilience and peace of mind you need configure windows to move your important directories such as 'documents' to the new external drive (on Vista this is as simple as right-mouse clicking on the folder you want to store elsewhere and click on the 'location' tab).

Once there use the SteelVine manager to configure email notifications so you know if you have a disk problem (don't leave it 'til the second drive fails!).

Other features

These I consider to be fairly incidental to this product but may be of use to a few people. Probably most popular is the ability to connect a USB device to the drive and then have that shared over the network. Particularly useful for printers - but you can also attach other USB hard disks.

Also when on a network there are various server options including iTunes, FTP and BitTorrent.

Summary

I really like this product and with the falling prices of large disks I hope other manufacturers follow suite and produce RAID1 systems for the home. Points of special note :

  • the decision to include cables for all interfaces
  • eSATA high performance interface
  • It just worked

The only thing that particularly let the product down was the documentation. The only printed documentation is an inadequate Quick Installation Guide. The soft-copy of the manual, while including everything you need, was not particularly logically laid out or very clearly written (a better translation would also be appreciated).

Documentation though should not detract from the fact that this is a very good product and will give people a safe and secure backup against the most common forms of data loss.

PRICING : I've tested the 500G unit (2x250G drives) which is available for £167.76 from the Amazon, including shipping. This is of course significantly higher than a single 250G drive (assuming, as you should that you configure RAID1) but set against this you don't need to worry as much about backups, backup software, recovery pain when you find that the backups you thought you were taking - you weren't!

Other options include :

Follow us on Twitter!!

add to del.icio.us Digg this review
StumbleUpon
Reddit

Reviews by related category

Have your say!

What's your experience of this product? Agree or disagree, or just have a question? Use the box below and let everyone know.

[ Add your comment | Watch this articleNew! ]

Rating:

Comment by pauljamesmoran, Apr 21, 2009 22:16

This looks good. I'm lazy so can I use this product as a NAS, a resilient file server an a backup as follows.

0) I buy the unit and an extra (3rd) disk.
1) Move all my data on the unit in RAID1 mode. I now have 2 copies of my data in the NAS unit.
2) when I go away for a few days, I remove one of the disks and put it into the safe for security against break-in and robbery. I put the spare disk into the unit and it SHOULD sync all the data to the most recent changes. I now have a copy in the safe and 2 copies in the NAS unit.
3) When I come back and continue working for a few days/weeks.
4) Suddenly remember that I should be more careful. Take one of the disks out of the unit and put it in the safe. and put the one that was in the safe into the unit. It SHOULD sync the OLDER disk up to the most recent changes.

I will ALWAYS have 2 copies in the NAS unit and so can survive a disk failure.
I ALWAYS have a relatively recent copy in the safe to survive theft.

Does this appraoch work?
Paul
Rating:

Comment by tonyz, Mar 6, 2009 12:24

How does the encryption work, i need to buy 150 nas boxes with AES256 Encryption build in?
Rating:

Comment by petew, Jan 1, 2009 22:28

No - you can't use both eSATA and Ethernet at the same time, but then there isn't really a need to do that. Using eSATA the computer treats the drive like any other internal hard-disk. This means you can then simply share the drive over the computers Ethernet or WiFi connection like any other internal drive.
Rating:

Comment by Alex Edwards, Jan 1, 2009 11:29

I've just been considering buying one of these from Misco (a good price right now).  Thank you for your thorough article!

I just wonder whether you can use both eSATA and Ethernet at the same time, say?
Rating:

Comment by petew, Nov 11, 2008 2:58

I've now retested the Firestorm across both wired and direct-connect wired Ethernet and achieved the kind of results I expected. The article above has been updated to reflect the additional tests and the revised performance numbers.

Note the paragraph on the idea of NAS as a suitable home-networking technology!
Rating:

Comment by petew, Nov 10, 2008 23:11

Hi Giro,
it so happens the box is still here - hasn't been collected so I'll take it out and give it a try. I un-installed all the software a few days back :-(. I didn't bother before because to be honest the performance for most home networks is aways going to be very poor. On a 100M Ethernet link the maximum theoretical throughput is no more than around 10Mbytes/sec and probably less by the time you allows for networking overhead, handshakes etc. At that speed it's slower than USB. You wouldn't use it as your main storage so you're left using it for backups and then you're back to having to remember to schedule backups and check whether those backups worked. You could use it as a reliable media server as long as you don't mind slow transfer rates.

What speed did you get on the IcyBox you were using?

Pete
Rating:

Comment by giro83, Nov 10, 2008 20:40

Peter you should have included the network transfer speed...which is between the most important things in a N(etwork)AS.
I'm dying to know how it performs compared to other entry-level products (see IcyBox etc..)
That's very important after an extremely disappointing experience with a WD My Book world Edition II.
